Gadget Intelligent display concept focusing on electric driving Mercedes-Benz F 800
A glance into the future of pioneering upper-range sedans
Within the 4.75-meter external length of the F 800 Style, all of the components of the vehicle’s especially efficient and environmentally compatible alternative drives (Plug-in Hybrid or fuel cell drive system) are installed in a space-saving manner in the engine compartment and the gaps within the chassis. Each of the drive systems takes up comparatively little space for the installation. This applies in particular to the electric drive with fuel cell, which has been enhanced by Mercedes-Benz to be compact and powerful. The front end’s compact package was made possible through the consistent downsizing of all F-CELL components. As a result, the entire interior space is preserved and offers lots of room for five occupants.
F 800 Style with Plug-in Hybrid: Outstanding performance despite emissions of only 68 grams CO2 per kilometer
In combination with the very powerful Plug-in Hybrid drive system, the F 800 Style is a very dynamic expression of the concept of “fascination and responsibility.” Its drive unit consists of a V6 gasoline engine with an output of approximately 220 kW (300 hp) with next-generation direct injection and a hybrid module with an output of about 80 kW (109 hp) so that it delivers a total power of around 300 kW (409 hp). The lithium-ion battery with a storage capacity of >10 kWh can be recharged either at a charging station or a household power socket. Thanks to its powerful and high-torque hybrid module, in the city the F 800 Style can run exclusively on electricity and therefore without generating any local emissions. Because it also has a high torque right from the moment it starts, the vehicle has the same driving performance as a car with a V6 gasoline engine even when operating in electric mode. The F 800 Style with the Plug-in Hybrid can run purely on electricity for up to 30 kilometers. The F 800 Style research vehicle therefore marks a further important step in the creation of a market-ready Plug-in Hybrid. Mercedes-Benz will begin series production of the S 500 Plug-in Hybrid with the introduction of the next-generation S-Class.
Flexible, secure, and fully suited to everyday use: The F 800 Style with electric drive and fuel cell technology
The F 800 Style also offers clean driving pleasure in the variant equipped with an electric drive based on fuel cell technology. The vehicle’s electric motor develops around 100 kW (136 hp) as well as a strong torque of approximately 290 Nm. The fuel cell generates the traction current by chemically reacting hydrogen with oxygen onboard the vehicle, producing water vapor in the process as the only emission.
F 800 Style with further innovations for more comfort and safety

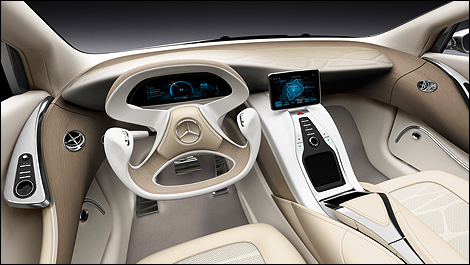

In addition to a multi drive platform that is unparalleled for large sedans and the combination of different alternative drive technologies, the F 800 Style features many other technological innovations, such as a new operating and display concept and a human-machine interface (HMI) with a cam touchpad. The display shows many additional functions not found in conventional instrument clusters. The F 800 Style’s operation and display concept focuses for the first time primarily on electric driving functions.
